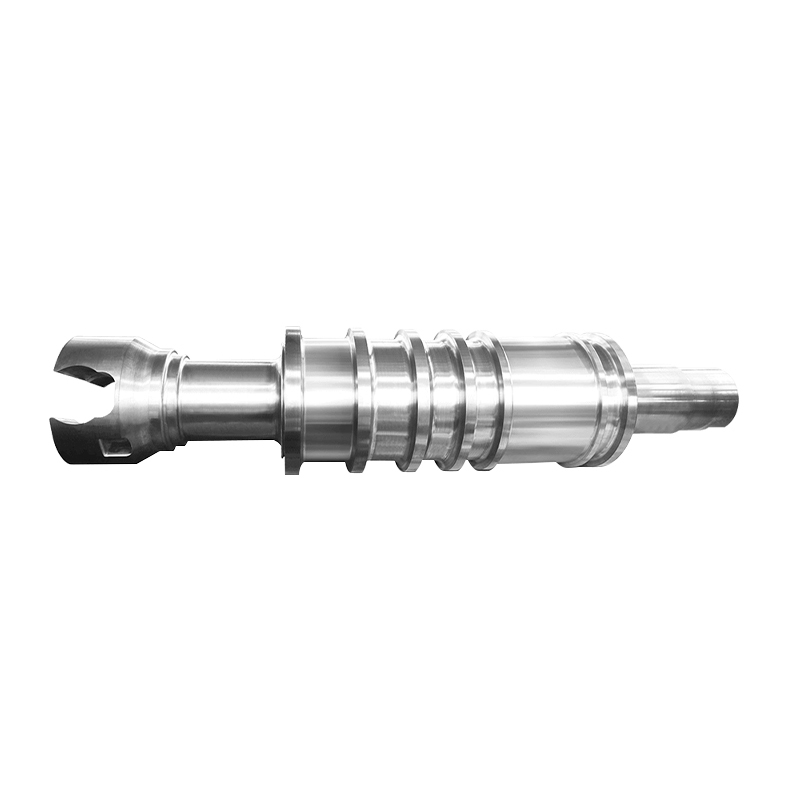

High Strength Alloy Nodular Cast Iron Rolls

The alloy nodular cast iron roller, which is poured by chilling and has been specially heat treated, has the advantages of high strength, uniform carbide distribution, small hardness drop, and good hot crack resistance. It is suitable for coarse and medium rolling stands of alloy steel with poor cooling conditions, large deformation resistance, or large rolling force.

Get A Quote
PREV: Bainitic Nodular Cast Iron Rolls
NEXT: Non Continuous Carbides Rolls
  • Specification
  • Contact Us

  • Chemical Compositions (wt.%)

    Material code C Si Mn Cr Mo Ni
    Own material
    SHD50 3.1-3.6 1.2-2.0 0.5-1.0 0.1-0.5 0.3-0.7 1.5-2.0
    SHD55 3.1-3.6 1.2-2.0 0.5-1.0 0.4-0.8 0.5-1.0 2.0-2.5
    SHD60 3.1-3.6 1.2-2.0 0.5-1.0 0.6-1.2 0.5-1.0 2.5-3.0

    Properties and Applications

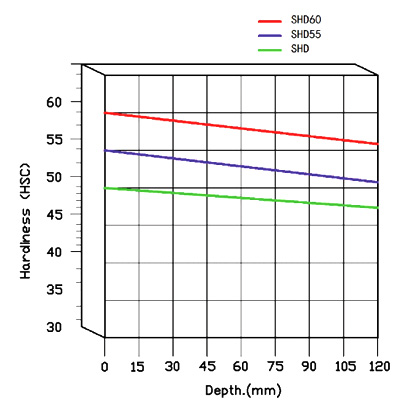

    Material code Roller body hardness (HSD)

    Tensile strength Rm(N/mm2)

    		 Maximum size(mm) Maximum unit weight(t) Recommended use
    Own material
    SHD50 40-55 500-600 Φ1350 35 Rough and medium rolling of section steel;
    Rough rolling of strip steel;
    SHD55 50-60 500-600
    SHD60 55-65 450-550
