Bevel Gear: Precision and Versatility in Mechanical Power Transmission

Bevel gear stand as a testament to the ingenuity of mechanical engineering, offering a sophisticated solution to complex power transmission needs. These gears, characterized by their conical shape, are essential in systems where the direction of the axis needs to change, typically in right-angle configurations. From automotive to industrial machinery, bevel gears are indispensable in optimizing performance, reliability, and efficiency.

Understanding Bevel Gears: The Basics

At their core, bevel gears are designed to transmit motion between intersecting shafts, typically at a 90-degree angle. This unique capability makes them crucial for a wide range of applications, including differential drives in vehicles, as well as machinery where space constraints demand compact and effective power transfer. Bevel gears come in several variations, with the most common being straight, spiral, and hypoid gears. Each type offers distinct advantages, depending on the specific requirements of the system.

The Mechanical Artistry Behind Bevel Gears

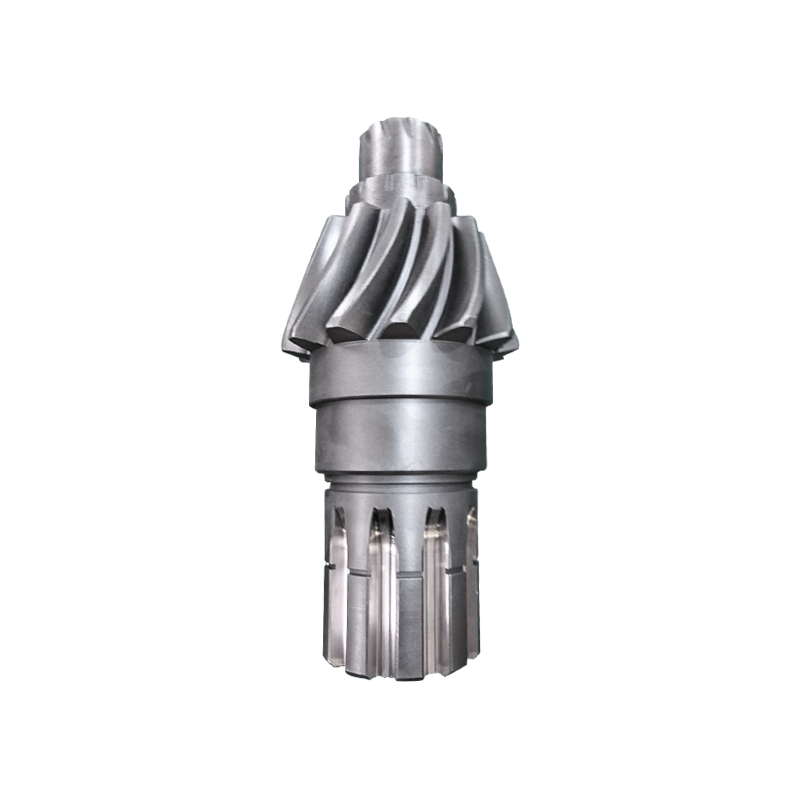

The defining feature of bevel gears is their tapered teeth, which engage at an angle, allowing for efficient power transfer between the shafts. The spiral bevel gear, for instance, offers smoother engagement, reducing noise and wear, making it ideal for high-speed applications. Conversely, straight bevel gears are preferred for applications where simplicity and cost-effectiveness take precedence.

When properly designed and implemented, bevel gears can transfer significant amounts of torque with minimal backlash. This efficiency is particularly evident in high-performance engines, heavy-duty machinery, and precision equipment, where every ounce of power matters.

Applications of Bevel Gears

The versatility of bevel gears spans across a diverse range of industries. In automotive engineering, bevel gears are integral to the operation of differential systems, allowing vehicles to smoothly turn corners by transmitting power to the wheels at varying speeds. In aerospace, bevel gears are employed in complex transmission systems that require high reliability and precision. Additionally, bevel gears find applications in industrial machinery, robotics, and even in the production of power tools.

The ability of bevel gears to handle substantial loads while maintaining low noise and vibration levels makes them indispensable in critical machinery. The gears' conical design ensures they can endure heavy torque, while their efficient operation minimizes energy loss, thus enhancing the longevity and performance of mechanical systems.

The Benefits of Bevel Gears

One of the primary benefits of bevel gears is their ability to facilitate smooth, high-performance power transmission at right angles, a feature that is indispensable in compact systems. The precise engagement of their teeth ensures minimal friction, which directly translates into lower maintenance requirements and extended service life.

Additionally, bevel gears excel in high-torque applications. Their strength and durability allow them to function effectively in heavy-duty environments, from large-scale industrial plants to intricate mechanical devices. By providing efficient power transfer, bevel gears also contribute to reducing energy consumption and improving the overall energy efficiency of the system.

Bevel gears represent the epitome of mechanical engineering excellence. Their unique ability to transmit power at right angles with efficiency and precision makes them invaluable in a wide array of applications. From automotive to aerospace, these gears provide the reliability, performance, and durability required for modern, high-demand mechanical systems. As technology advances and the need for more sophisticated and compact power transmission solutions grows, bevel gears will continue to play a pivotal role in shaping the future of engineering design.
