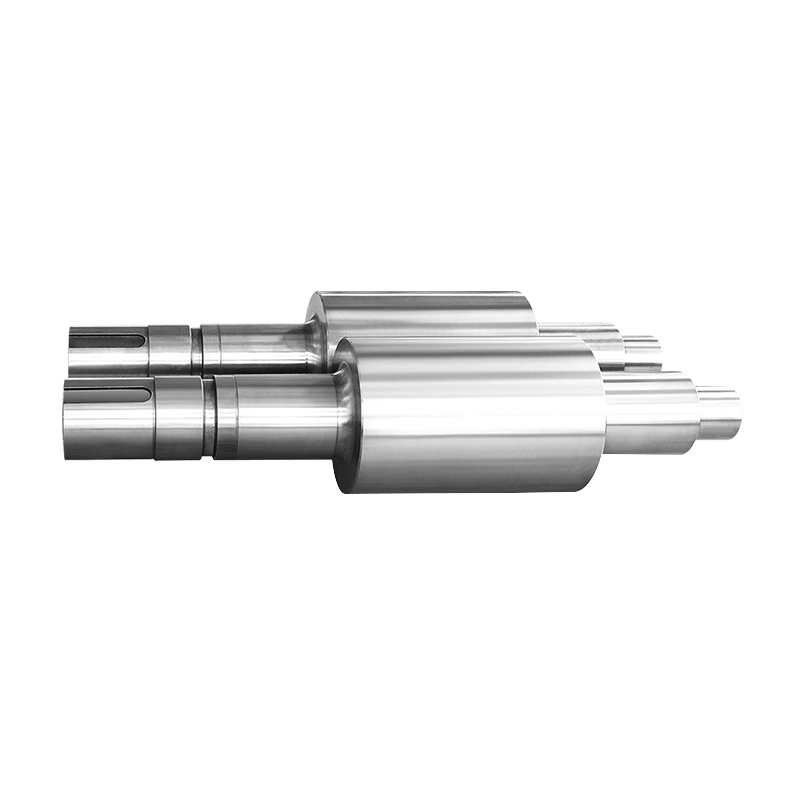

Alloy Indefinite Chilled Cast Iron Rolls

There is fine intergranular graphite in the working layer of the alloy infinitely chilled roll. The chilling effect and alloy content can control the size, shape, and distribution of graphite and carbide. As manganese, chromium, nickel, molybdenum, and other alloy elements are added, the matrix structure can be pearlite, bainite, or martensite. In addition, there is a small amount of fine graphite, which not only improves the anti-stripping, anti-hot cracking, and wear resistance of the roll but also reduces the hardness drop of the working layer of the roll body. It is used for medium and finish rolling stands of bar, wire rod, and small section steel mills.

Get A Quote
PREV: High Chromium Cast Steel Rolls
NEXT: High Chromium Cast Iron Rolls
  • Specification
  • Contact Us

  • Chemical Compositions (wt.%)

    Material code C Si Mn Cr Ni Mo V W Nb
    GB/T 1504
    IC II 2.9-3.6 0.6-1.2 0.4-1.2 0.7-1.2 1.01-2.00 0.2-0.6 - - -
    IC III 2.9-3.6 0.6-1.2 0.4-1.2 0.7-1.2 2.01-3.00 0.2-1.0 - - -
    IC IV 2.9-3.6 0.6-1.5 0.4-1.2 1.0-2.0 3.01-4.80 0.2-1.0 - - -
    IC V 2.9-3.6 0.6-1.5 0.4-1.2 1.0-2.0 3.01-4.80 0.2-1.0 0.2-2.0 0.0-2.0 0.0-2.0

    Properties and Applications

    Material code Roller body hardness (HSD)

    Tensile strength Rm(N/mm2)

    		 Maximum size(mm) Maximum unit weight(t) Recommended use
    GB/T 1504
    IC II 55-70 ≥160 Φ800 15 Medium and finish rolling stands for small and medium
    section steel and narrow-strip steel
    IC III 60-75 ≥350
    IC IV 65-80 ≥350 Working roll and leveling roll of plate and hot strip mill
    IC V 70-85 ≥350
