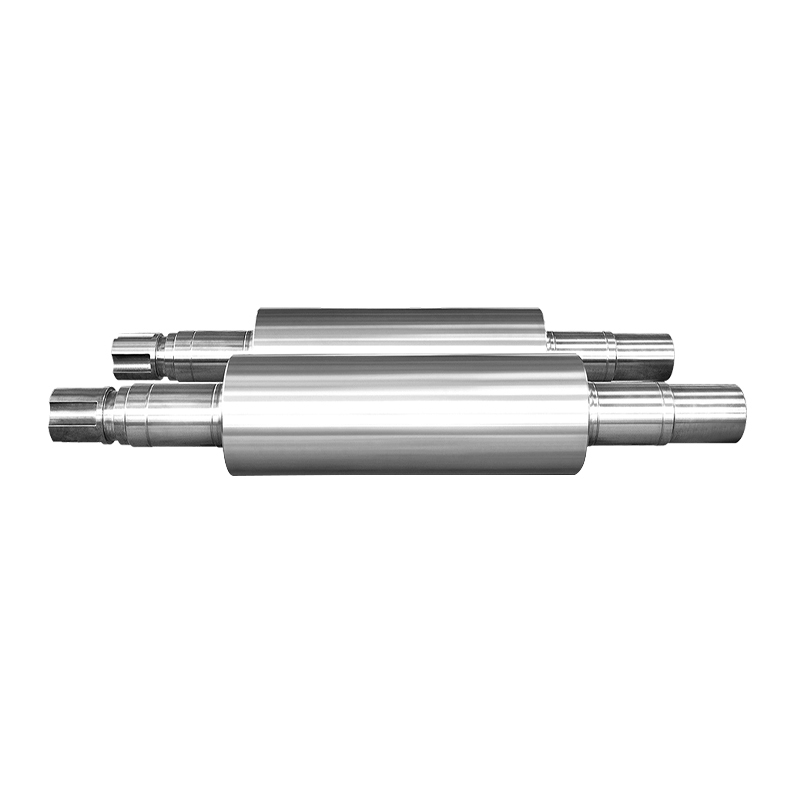

High Chromium Cast Iron Rolls

The centrifugal composite high chromium cast iron roll is a high alloy roll. The matrix structure of its working layer is martensite +troostite/sorbite, and the carbides are mainly plate like and chrysanthemum-like Cr7C3 eutectic carbides. The core is made of high-strength ductile iron. High chromium cast iron roll rings can also be produced by centrifugal casting or normal casting. It is suitable for the finishing roll of the hot strip mill, an intermediate and finishing roll of the bar, and a roll ring of the universal mill.

Get A Quote
PREV: Alloy Indefinite Chilled Cast Iron Rolls
NEXT: Spheroidal Graphite Pearlite Cast Iron Rolls
  • Specification
  • Contact Us

  • Chemical Compositions (wt.%)

    Material code C Si Mn Cr Ni Mo v
    GB/T 1504
    HCr I 2.3-3.3 0.3-1.0 0.5-1.2 12.00-15.00 0.7-1.7 0.7-1.50 0.0-0.6
    HCr II 2.3-3.3 0.3-1.0 0.5-1.2 12.00-15.00 0.7-1.7 0.7-1.50 0.0-0.6
    HCr III 2.3-3.3 0.3-1.0 0.5-1.2 12.00-15.00 0.7-1.7 1.51-3.00 0.0-0.6

    Properties and Applications

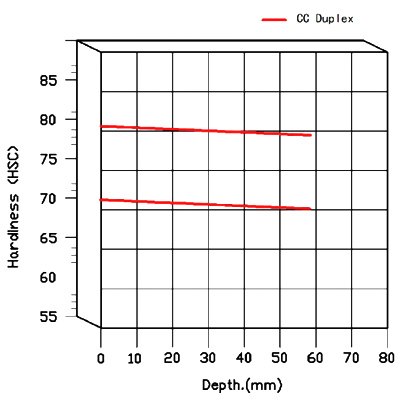

    Material code Roller body hardness (HSD)

    Tensile strength Rm(N/mm2)

    		 Maximum size(mm) Maximum unit weight(t) Recommended use
    GB/T 1504
    HCr I 60-75 ≥350 Φ1700 20 Finishing roll of hot strip mill; Bar intermediate and
    finishing rolls; Universal rolling mill roll ring;
    HCr II 65-80 ≥350
    HCr III 75-90 ≥350
