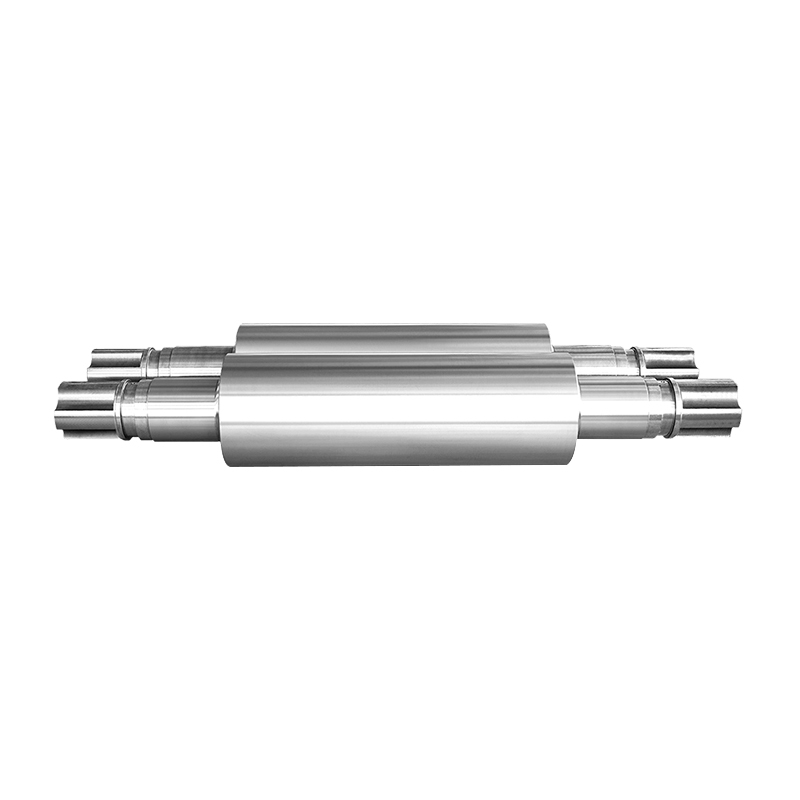

Bainitic Nodular Cast Iron Rolls

Nickel, manganese, chromium, molybdenum, and other alloy elements are added to the bainite ductile iron material. It has an acicular structure( bainite+a small amount of martensite) matrix, which has higher strength, better toughness, and significantly improved wear resistance than pearlite ductile iron rolls. It can be produced by static casting or centrifugal casting. The bainite ductile iron roll is suitable for continuous rolling of small section steel, medium rolling of bar, finishing rolling of flat steel, pre-finishing rolling of high-speed wire rod, and primary rolling of square/slab.

Get A Quote
PREV: Spheroidal Graphite Pearlite Cast Iron Rolls
NEXT: High Strength Alloy Nodular Cast Iron Rolls
  • Specification
  • Contact Us

  • Chemical Compositions (wt.%)

    Material code C Si Mn Cr Mo Ni
    GB/T 1504
    SGA I 2.9-3.6 1.2-2.2 0.2-0.8 0.2-1.0 3.01-3.50 0.5-1.0
    SGA II 2.9-3.6 1.0-2.0 0.2-0.8 0.3-1.5 3.51-4.50 0.5-1.0

    Properties and Applications

    Material code Roller body hardness (HSD)

    Tensile strength Rm(N/mm2)

    		 Maximum size(mm) Maximum unit weight(t) Recommended use
    GB/T 1504
    SGA I 55-78 ≥350 Φ1350 35 Continuous rolling of small section steel, medium
    rolling of the bar, finishing rolling of narrow strip steel
    High-speed wire pre-finishing rolling, square / slab
    blooming;
    SGA II 60-80 ≥350
