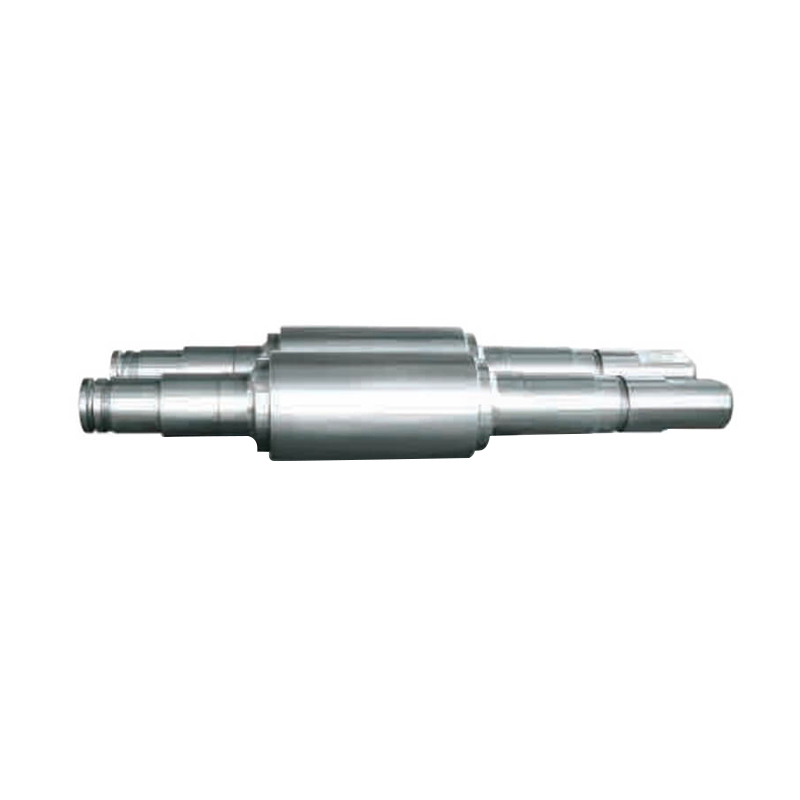

Forged Steel Rolls& Rolls Shaft

Alloy-forged steel rolls have comprehensive rolling properties, such as high heat fatigue resistance, high impact resistance, and good crack growth resistance. The roll neck has high toughness and high tensile strength. Forged steel roll is widely used for rough roll and straightening roll of large and medium-sized section mills.
Forged steel roll shafts and roll rings of various materials are assembled to form rolls for various section steel mills.

Get A Quote
PREV: Edger Rolls
NEXT: High Chromium Cast Steel Rolls
  • Specification
  • Contact Us

  • Chemical Compositions (wt.%)

    Material code C Si Mn Cr Ni Mo P S
    YB/T 4906
    9Cr2Mo 0.85-0.95 0.25-0.45 0.2-0.35 1.7-2.1 ≤0.25 0.2-0.4 ≤0.03 ≤0.03
    FS-800 I 0.4-0.7 0.15-0.45 0.6-1.0 0.6-1.0 0.0-0.5 0.15-0.40 ≤0.035 ≤0.025
    FS-800 II 0.4-0.7 0.15-0.45 0.6-1.0 0.6-1.0 0.5-1.5 0.2-0.6 ≤0.035 ≤0.025
    42CrMo 0.38-0.45 0.17-0.37 0.5-0.8 0.9-1.2 - 0.15-0.30 ≤0.03 ≤0.03
    60CrMnMo 0.55-0.65 0.20-0.45 0.9-1.2 0.8-1.2 - 0.20-0.45 ≤0.03 ≤0.03
    60CrNiMo 0.55-0.65 0.2-0.6 0.7-1.2 0.8-1.2 0.2-1.5 0.2-0.6 ≤0.03 ≤0.03
    36NiCrMo16 0.32-0.39 ≤0.4 0.3-0.6 1.6-2.0 3.6-4.1 0.25-0.45 ≤0.03 ≤0.03

    Properties and Applications

    Material code Roller body hardness (HSD)

    Tensile strength Rm(N/mm2)

    		 Recommended use
    YB/T 4906
    9Cr2Mo 55-70 ≥600 Rough roll and straightening roll for section mill
    FS-800 I 35-45 ≥800
    FS-800 II 35-45 ≥800 Coarse roll for large and medium section mill
    42CrMo 37-47 ≥800
    60CrMnMo 37-47 ≥800
    60CrNiMo 37-47 ≥800 Roll shaft for section mill
    36NiCrMo16 45-55 ≥950
