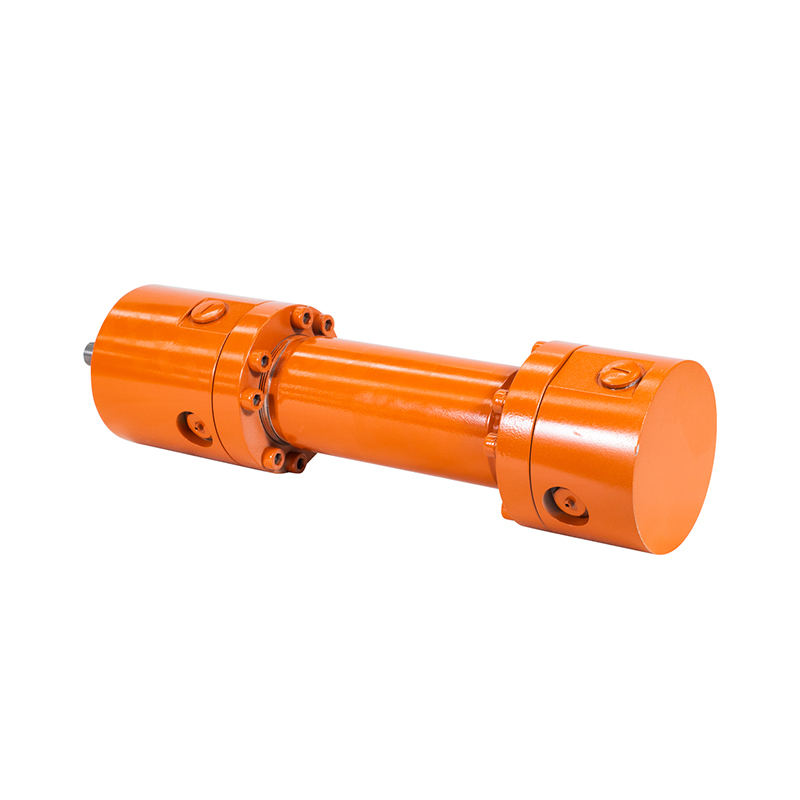

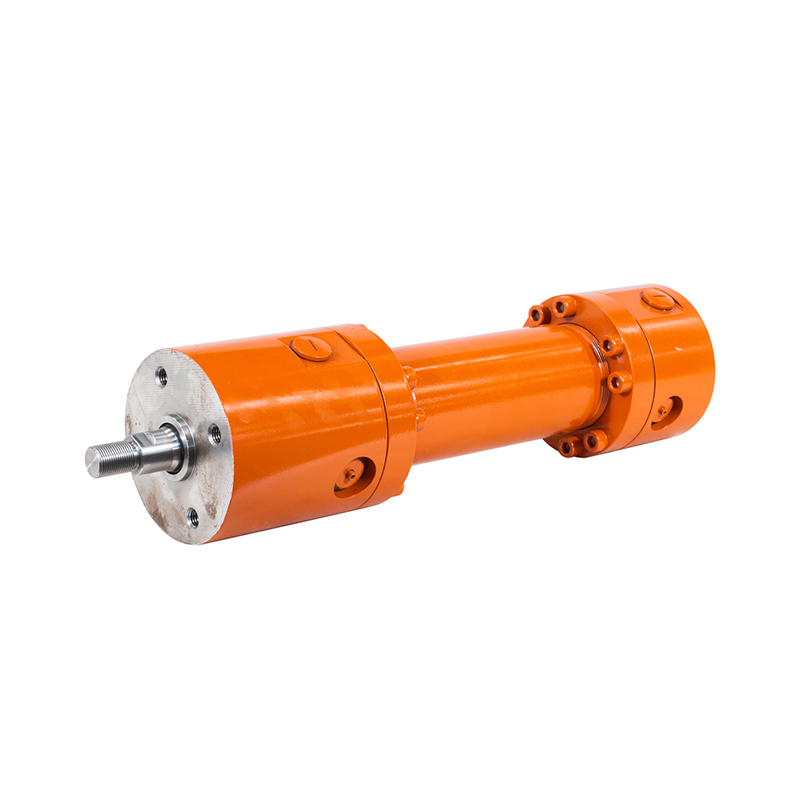

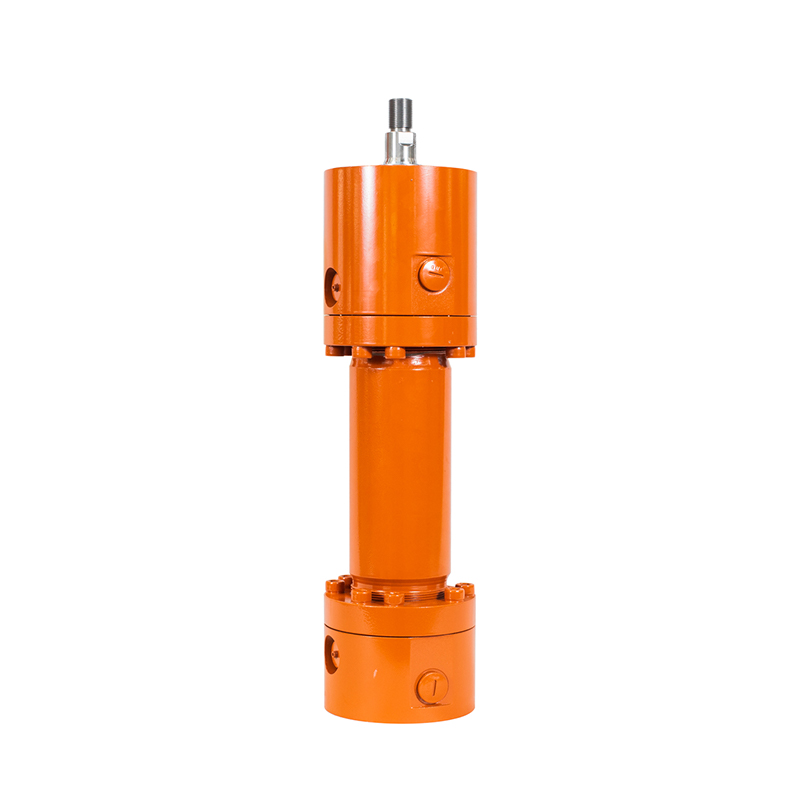

Heavy-Duty MA Series Hydraulic Cylinder

Heavy-duty MA series cylinders are mainly used in iron and steel metallurgical factories or other situations where hydraulic cylinders with strong load-bearing capacity and high reliability are required. In addition to the characteristics of the standard cylinder introduced in this catalog, MA metallurgical cylinders can also be designed and manufactured according to customer-specific requirements.

Get A Quote
PREV: MB Series Hydraulic Cylinder
NEXT: HE/HG Series Hydraulic Cylinder
  • Specification
  • Contact Us

  • ● Overloaded structure

    ● Method and size: Comply with CETOP RP73H, IS06022*, DIN24 333, BS 6331Pt.Ⅲ, AFNPR NF E48-025, VW 39D 921

    ● Rated pressure: 250bar

    ● No fatigue under rated pressure

    ● Use mineral hydraulic oil (other hydraulic oils are optional)

    ● Standard seal temperature range: -20℃~+80℃

    ● Structure: The cylinder head and cylinder cover are connected to thick steel flanges through bolts

    ● Cylinder inner diameter specifications: 50mm to 320mm

    ● Piston rod diameter: 32mm to 220mm

    ● Buffering: Optional on both ends

    ● Bleed valve: optional at both ends

    ● Tested according to ISO 10100: 2001
